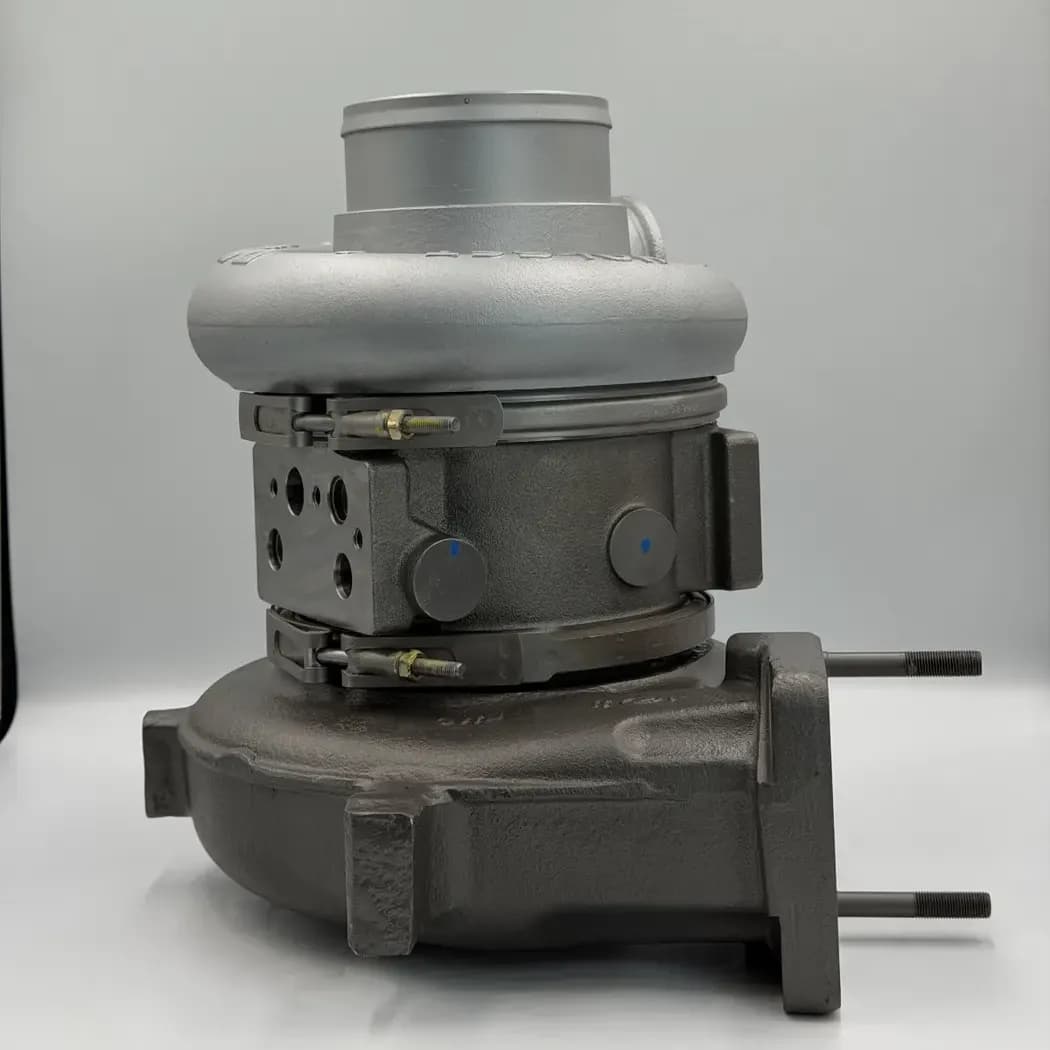

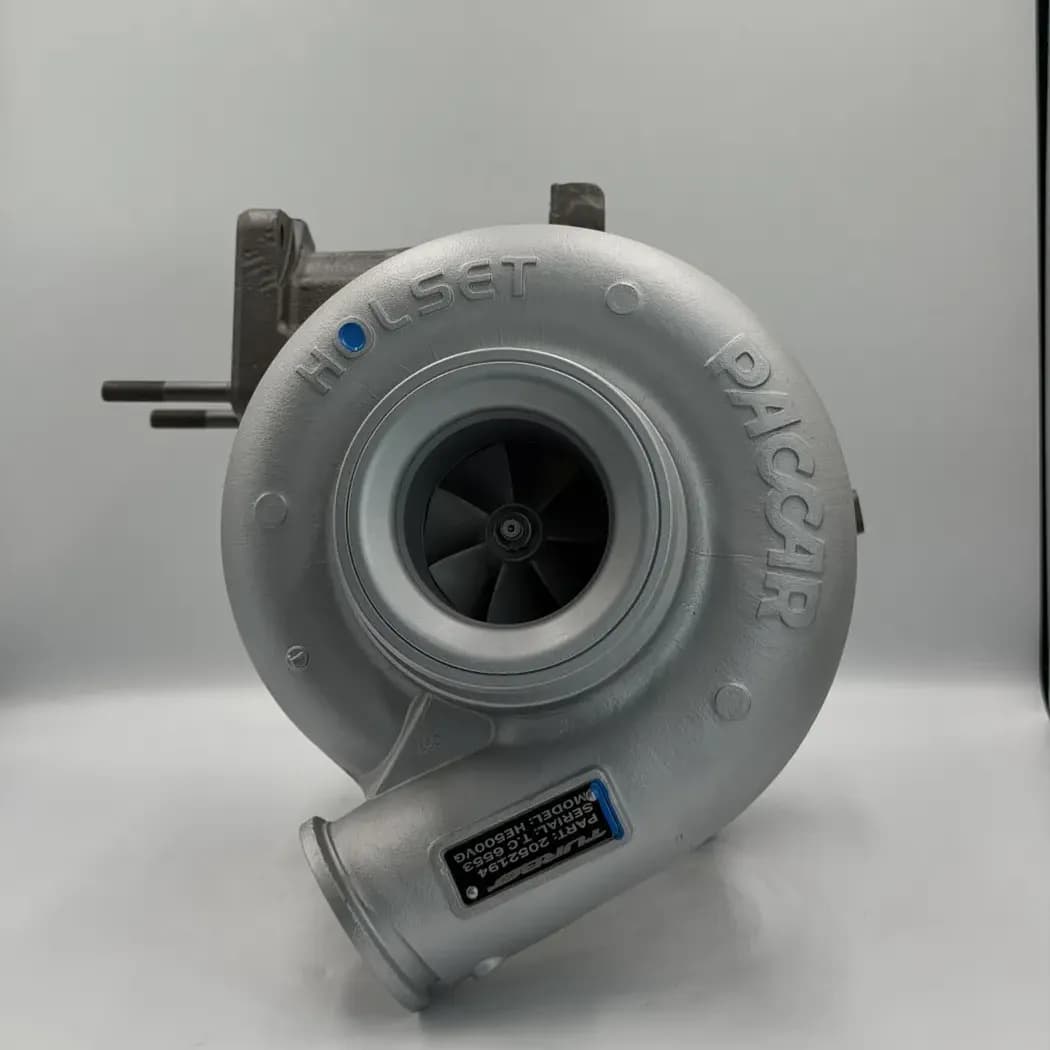

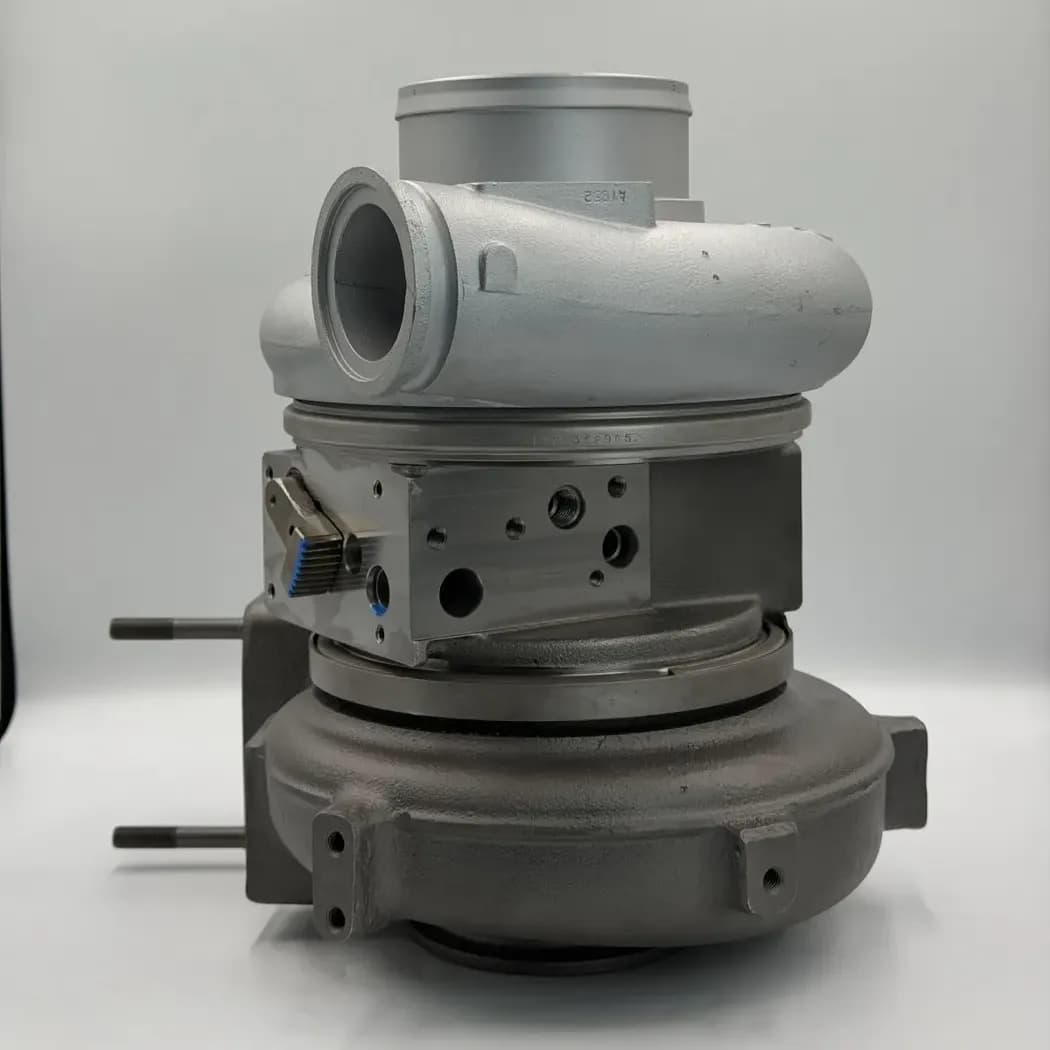

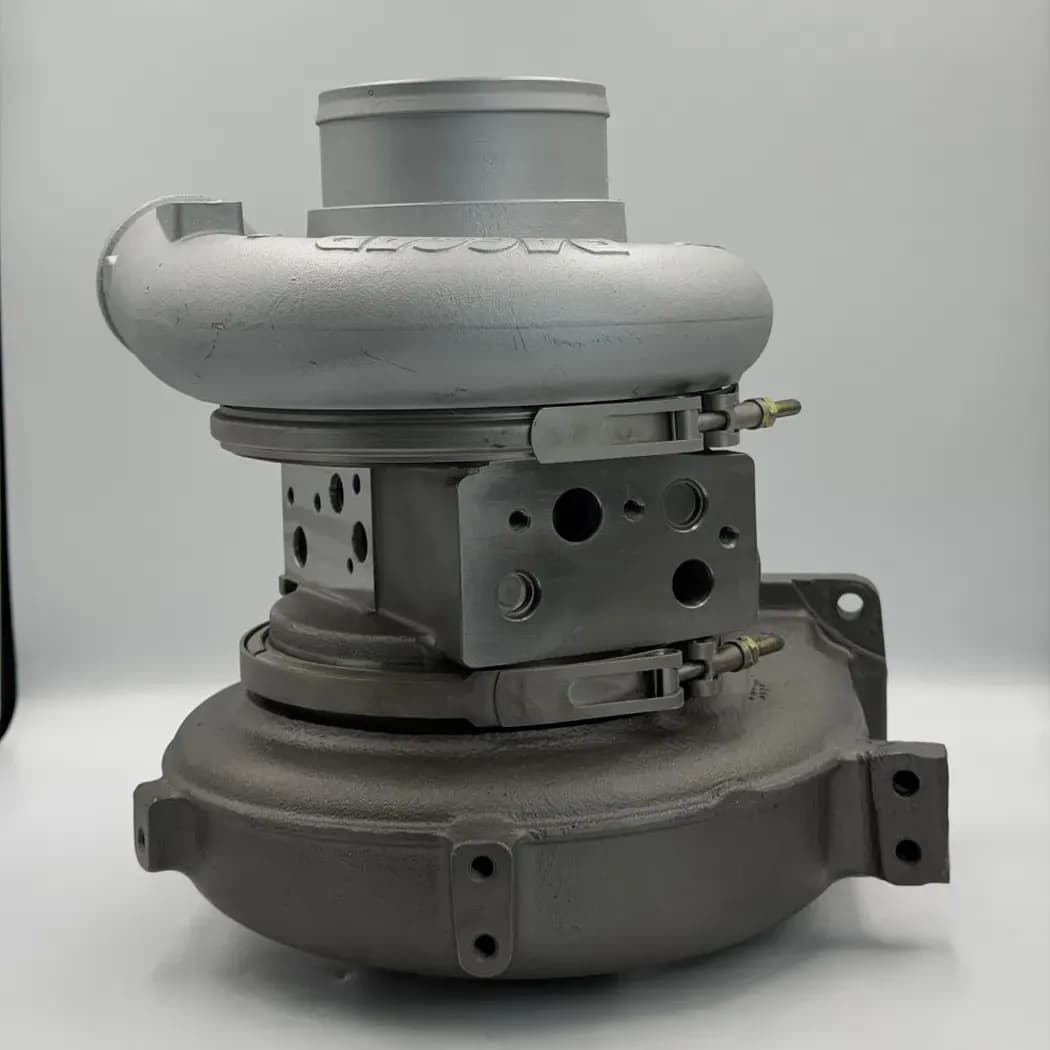

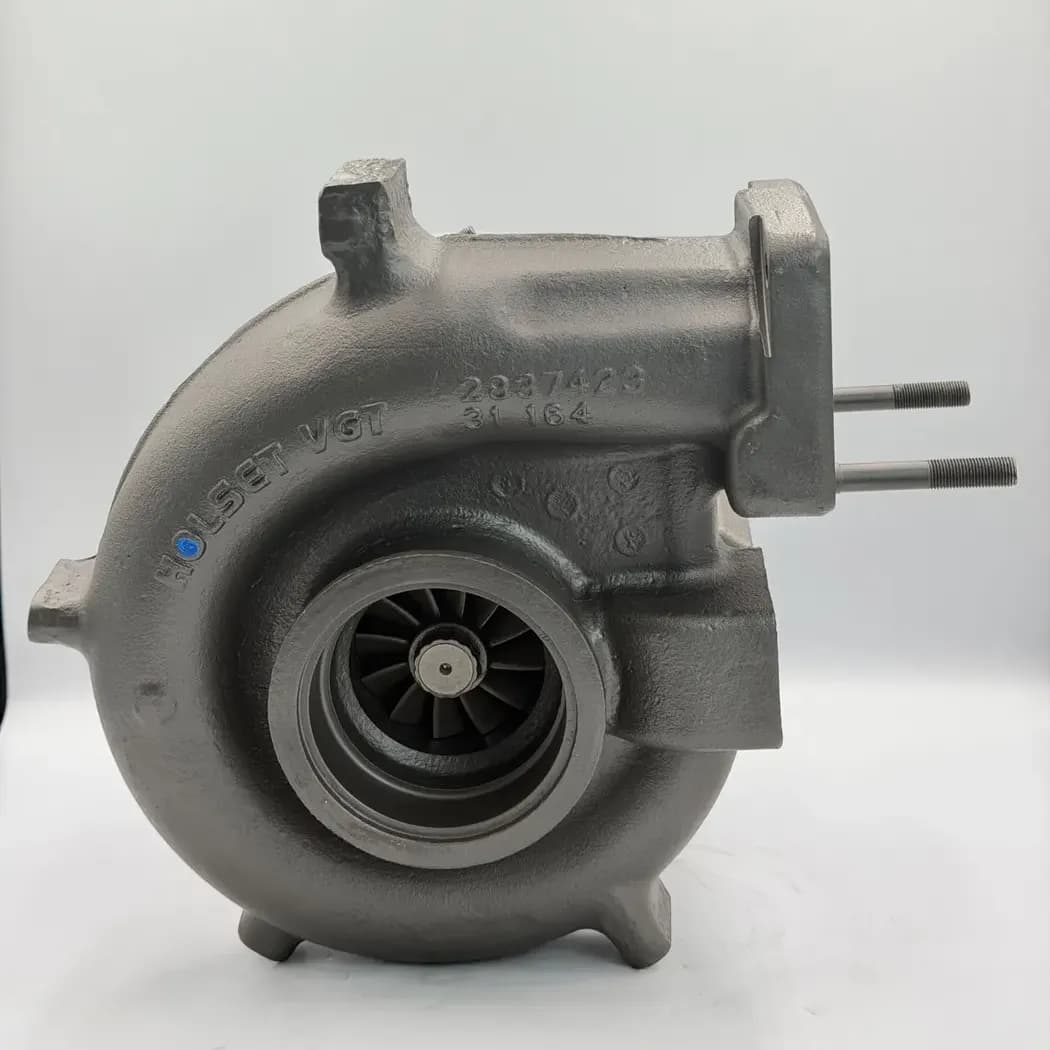

Remanufactured 2052194 PACCAR MX-13 EPA10 Holset HE500VG / HE531VE Turbocharger

The 2052194 Turbocharger is a purpose-matched Holset HE500VG / HE531VE assembly for PACCAR MX-13 EPA10, Kenworth and Peterbilt MX-13 applications where verified by engine serial number. It is built around the exact compressor, turbine, housing, and control specification associated with part number 2052194, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The 2052194 is an EPA10 PACCAR MX-13 HE531VE/HE500VG-family variable-geometry turbocharger. It controls exhaust energy to improve low-speed response, support EGR flow, manage aftertreatment temperature, and provide engine braking while supplying the airflow required by the 12.9L engine. The turbo-only version requires a compatible, serviceable actuator; the complete version includes the actuator matched to the turbo.

This is the turbo-only version and is supplied without the electronic actuator. The existing actuator should only be reused after its condition, compatibility, and calibration are verified; a worn or incorrectly indexed actuator can cause boost, vane-position, and engine-brake faults even when the turbocharger itself is sound. Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
