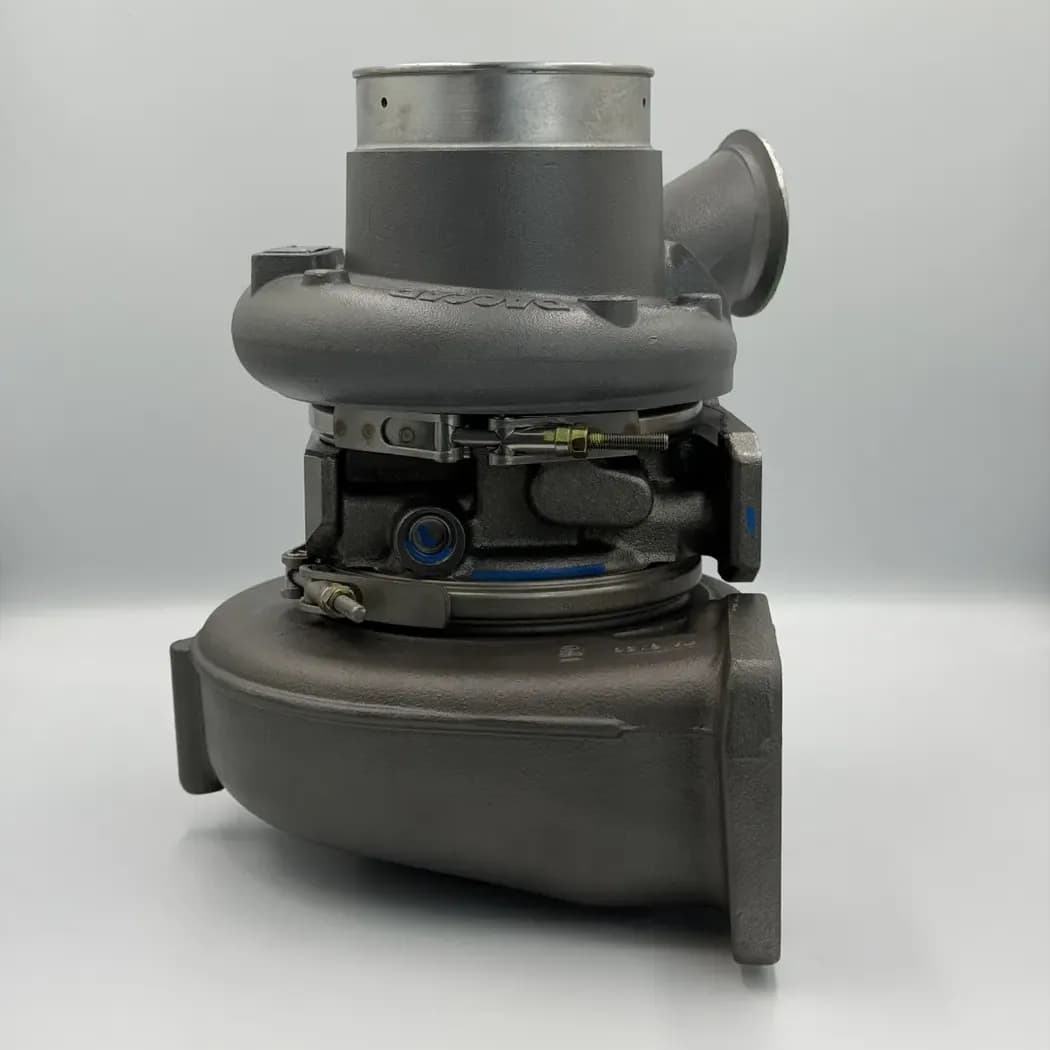

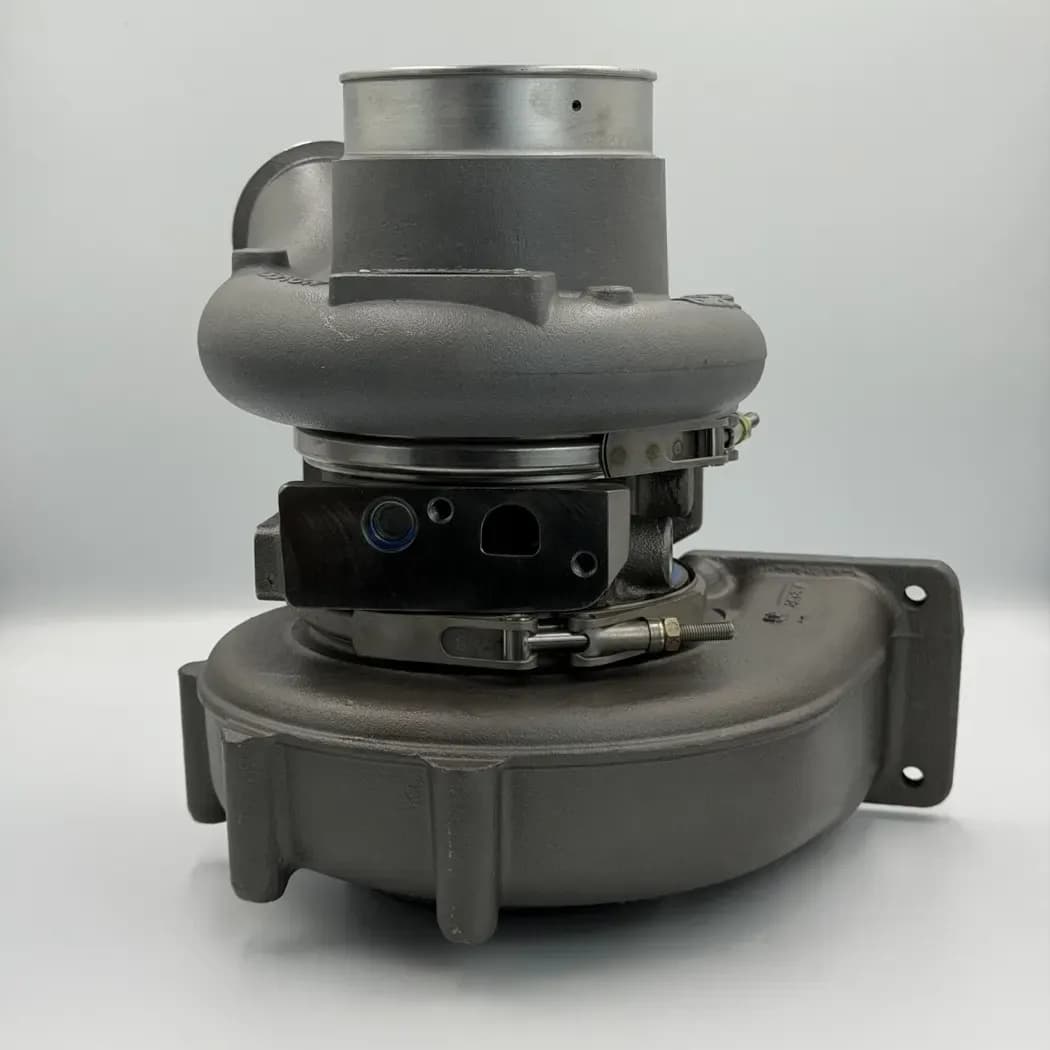

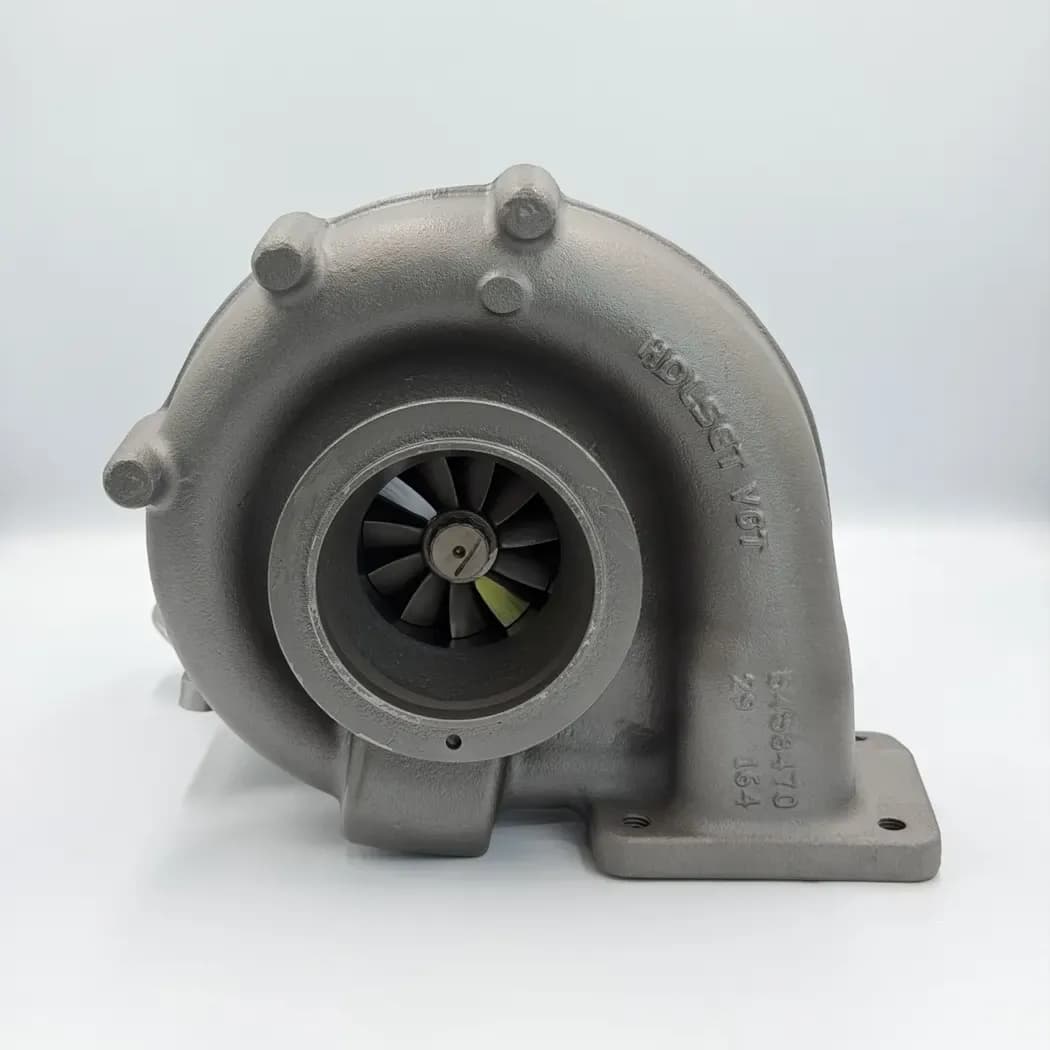

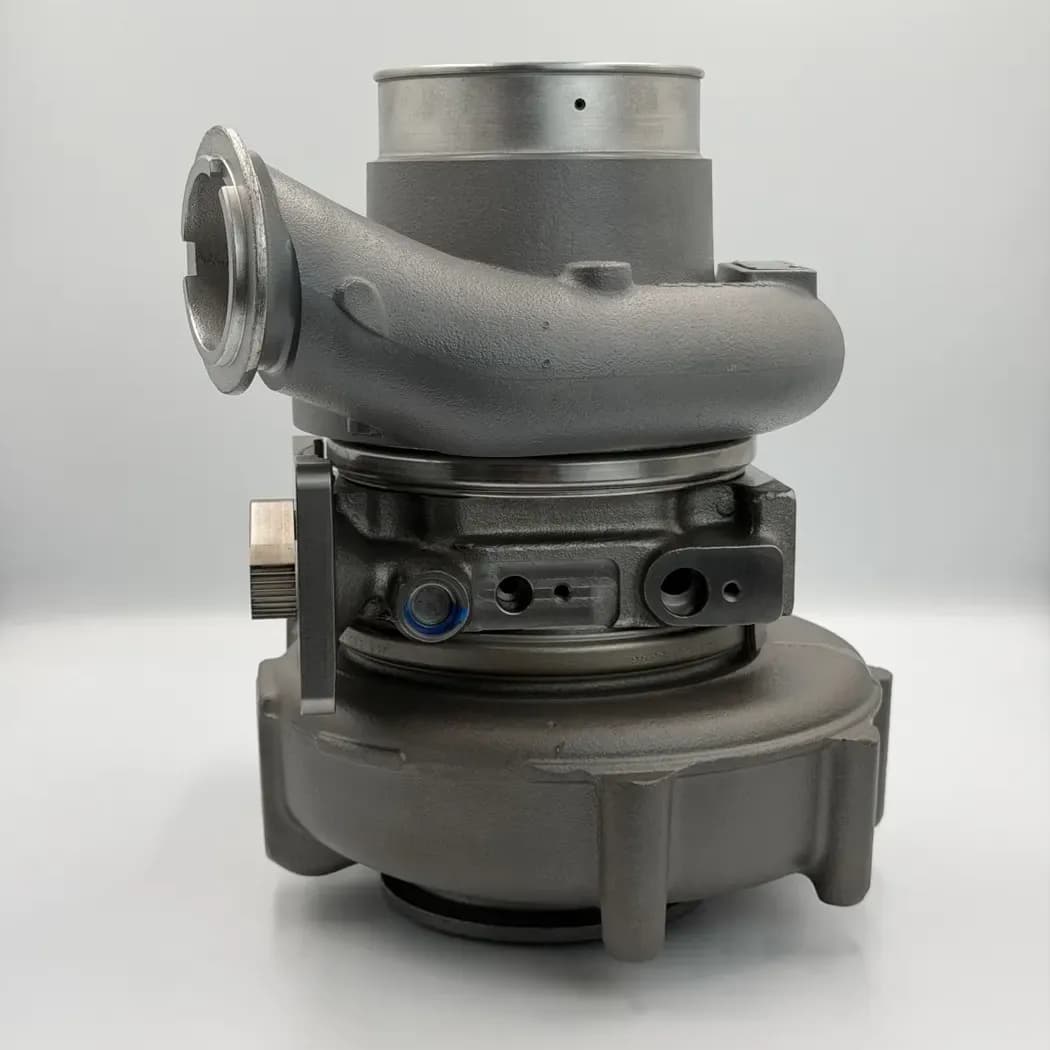

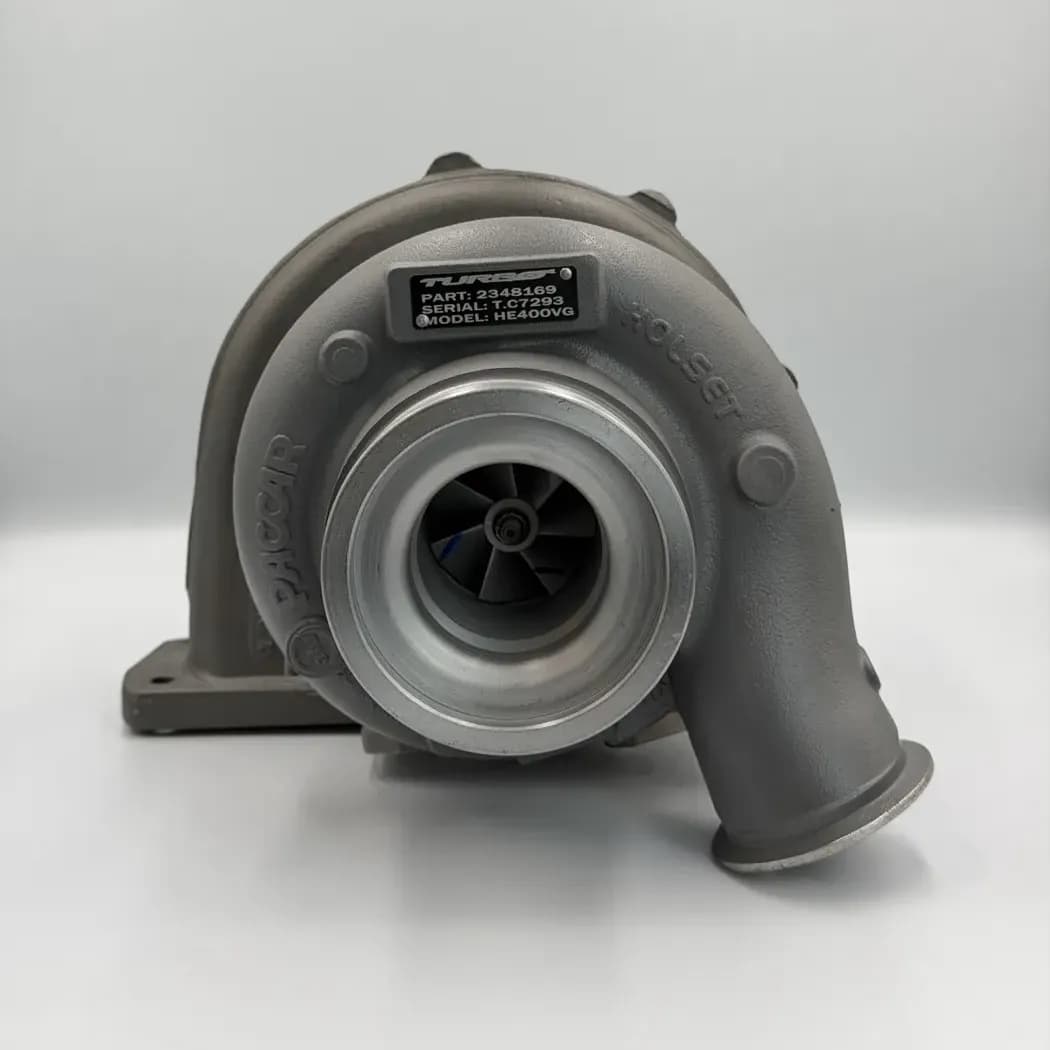

Remanufactured 2348169 PACCAR MX-13 EPA19 Holset HE400VG Turbocharger

The 2348169 Turbocharger is a purpose-matched Holset HE400VG assembly for PACCAR MX-13 EPA19, Kenworth and Peterbilt MX-13 applications where verified by engine serial number. It is built around the exact compressor, turbine, housing, and control specification associated with part number 2348169, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The 2348169 is an EPA19 PACCAR MX-13 HE400VG turbocharger. This later-generation unit uses a more compact VGT frame while still delivering the airflow, vane control, and engine-brake performance required by the MX-13. The turbo is closely integrated with the ECM and aftertreatment system, so diagnostic faults, sensor inputs, and actuator calibration should be resolved before the truck returns to service.

This is the turbo-only version and is supplied without the electronic actuator. The existing actuator should only be reused after its condition, compatibility, and calibration are verified; a worn or incorrectly indexed actuator can cause boost, vane-position, and engine-brake faults even when the turbocharger itself is sound. Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
