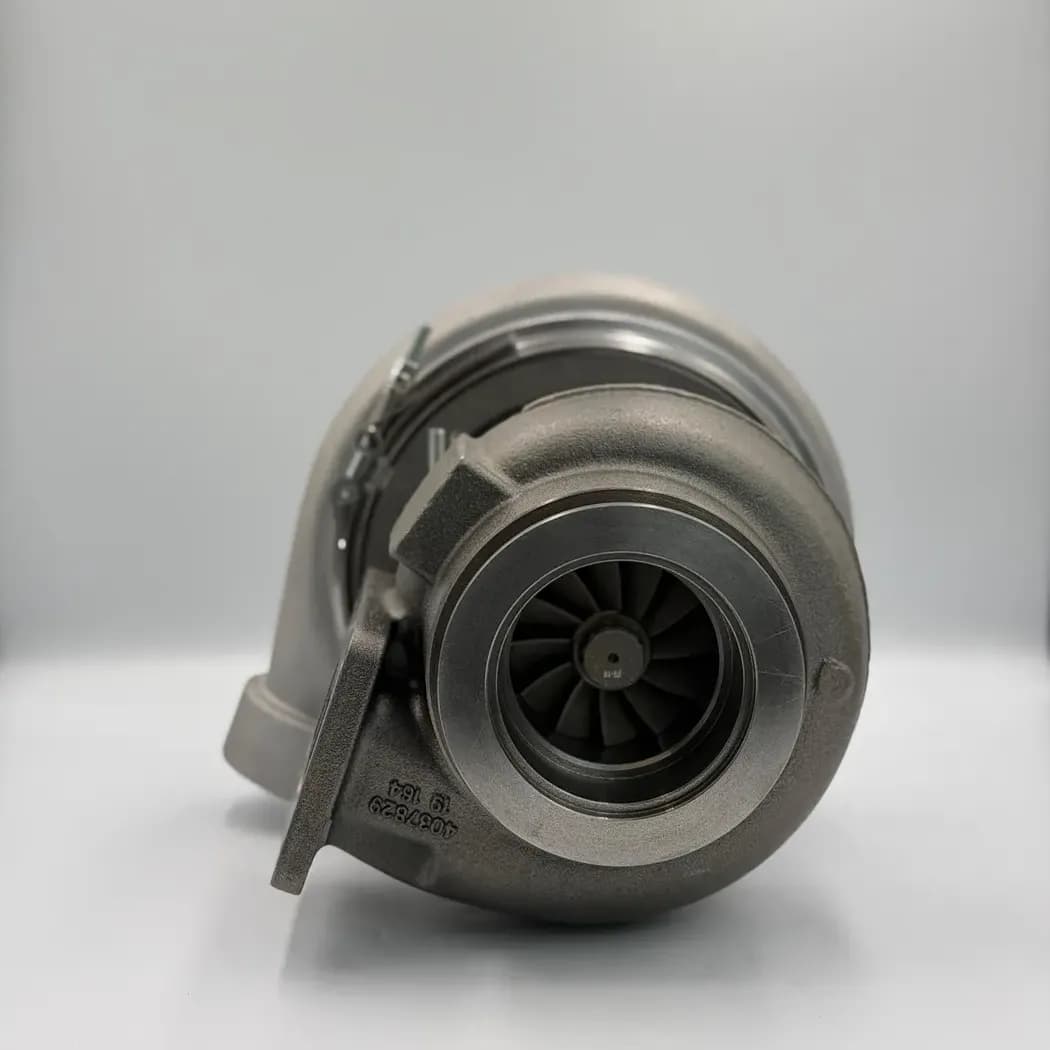

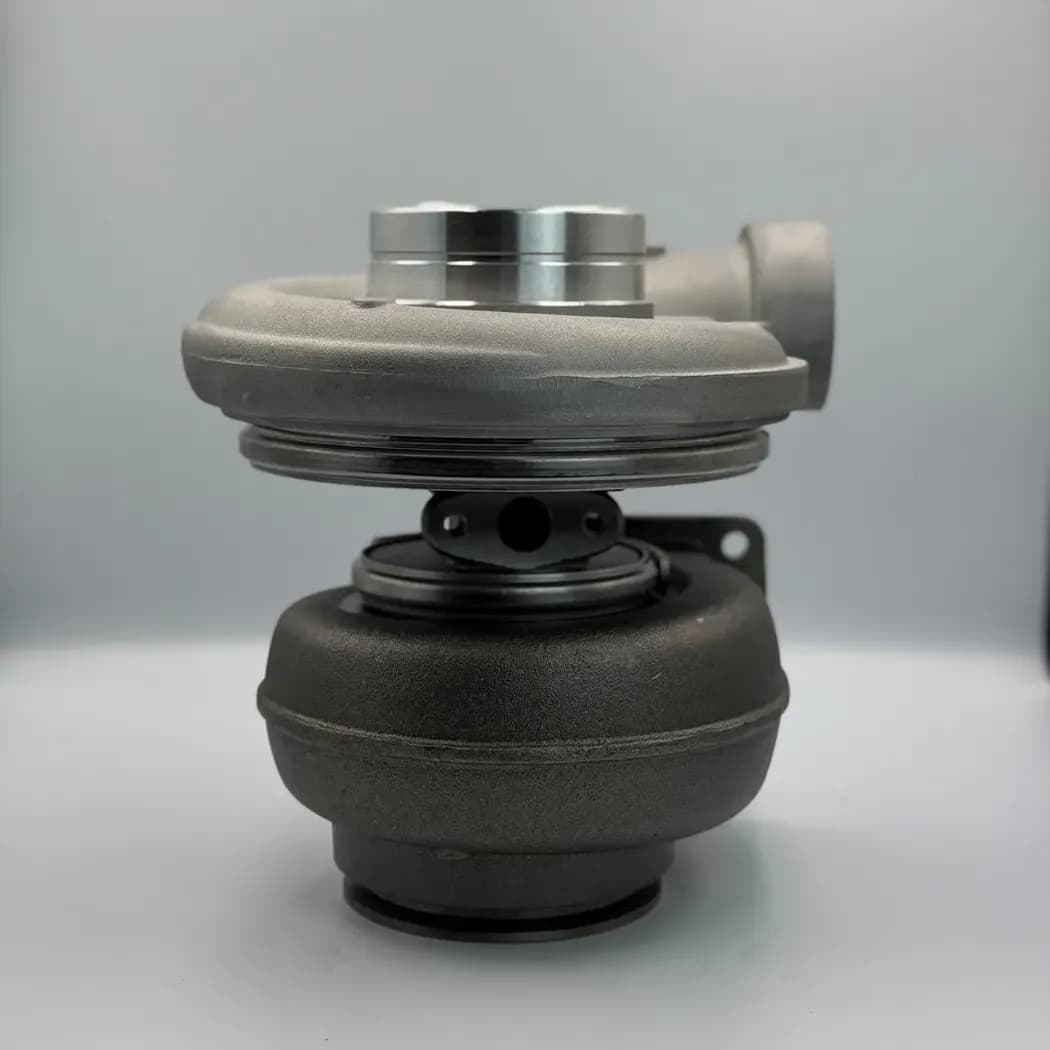

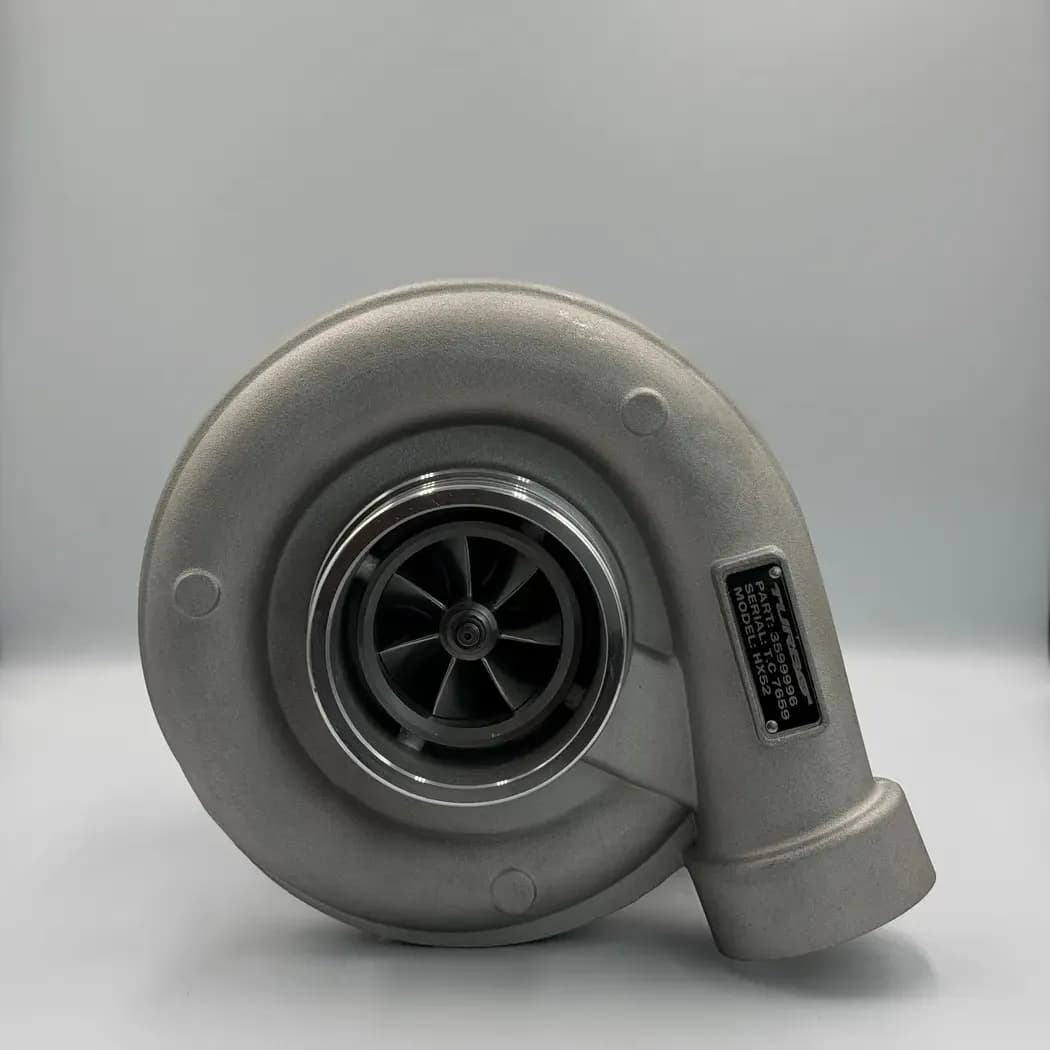

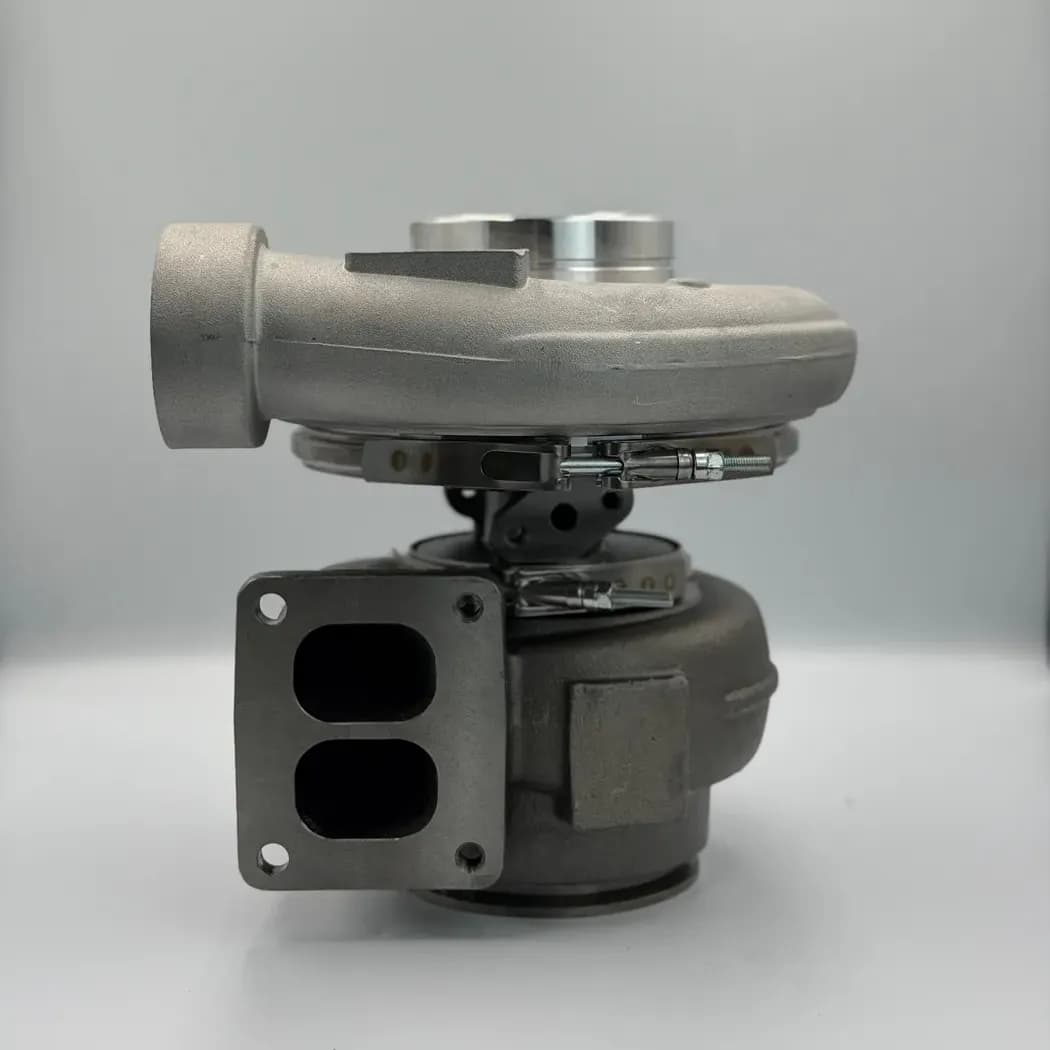

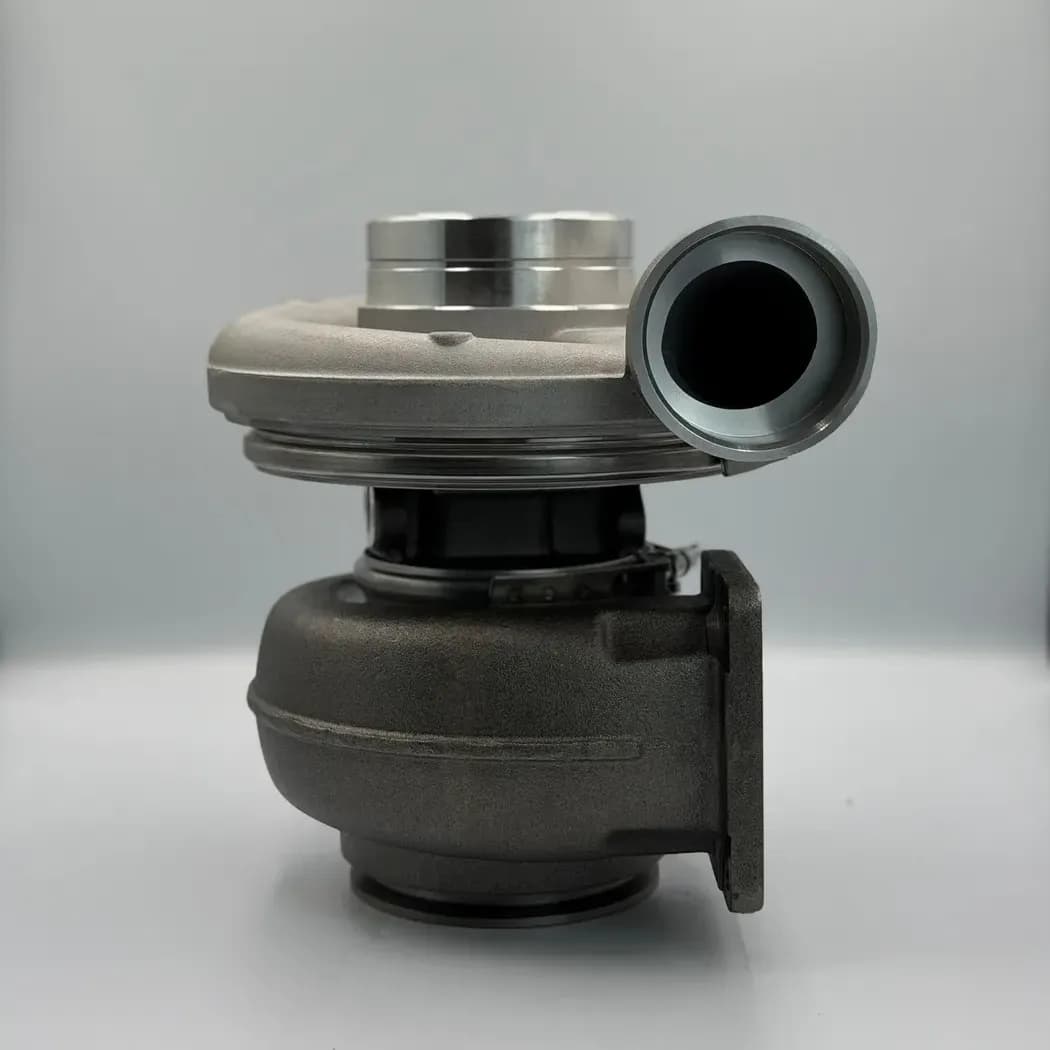

Remanufactured 3599996 Volvo D12 Holset HX52 Turbocharger

The 3599996 Turbocharger is a purpose-matched Holset HX52 assembly for Volvo D12, Heavy-duty Volvo truck applications matching OE fitment. It is built around the exact compressor, turbine, housing, and control specification associated with part number 3599996, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The Holset HX52 is a fixed-geometry turbocharger used on Volvo D12 applications. Its large-frame design provides the airflow and durability required for long-haul operation while avoiding the added complexity of an electronic VGT system. Correct compressor cover, turbine housing, outlet orientation, and oil-line fitment should be confirmed because several Volvo HX52 variants share a similar external appearance.

This listing is supplied as the turbocharger configuration shown. Correct installation requires clean oil feed and drain paths, a sealed charge-air and exhaust system, proper air filtration, and confirmation that the original failure did not leave debris or contamination in the engine system.

Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
