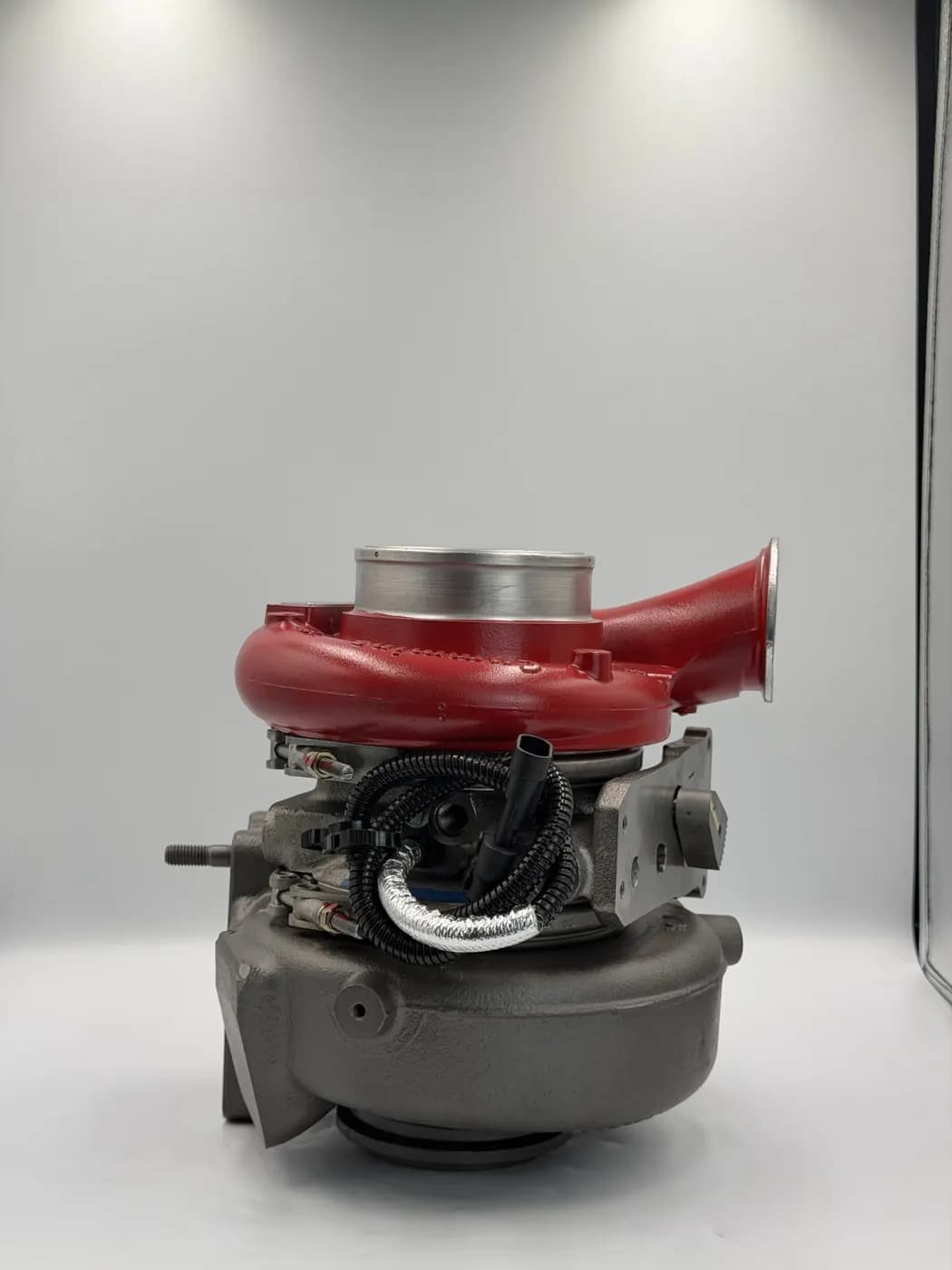

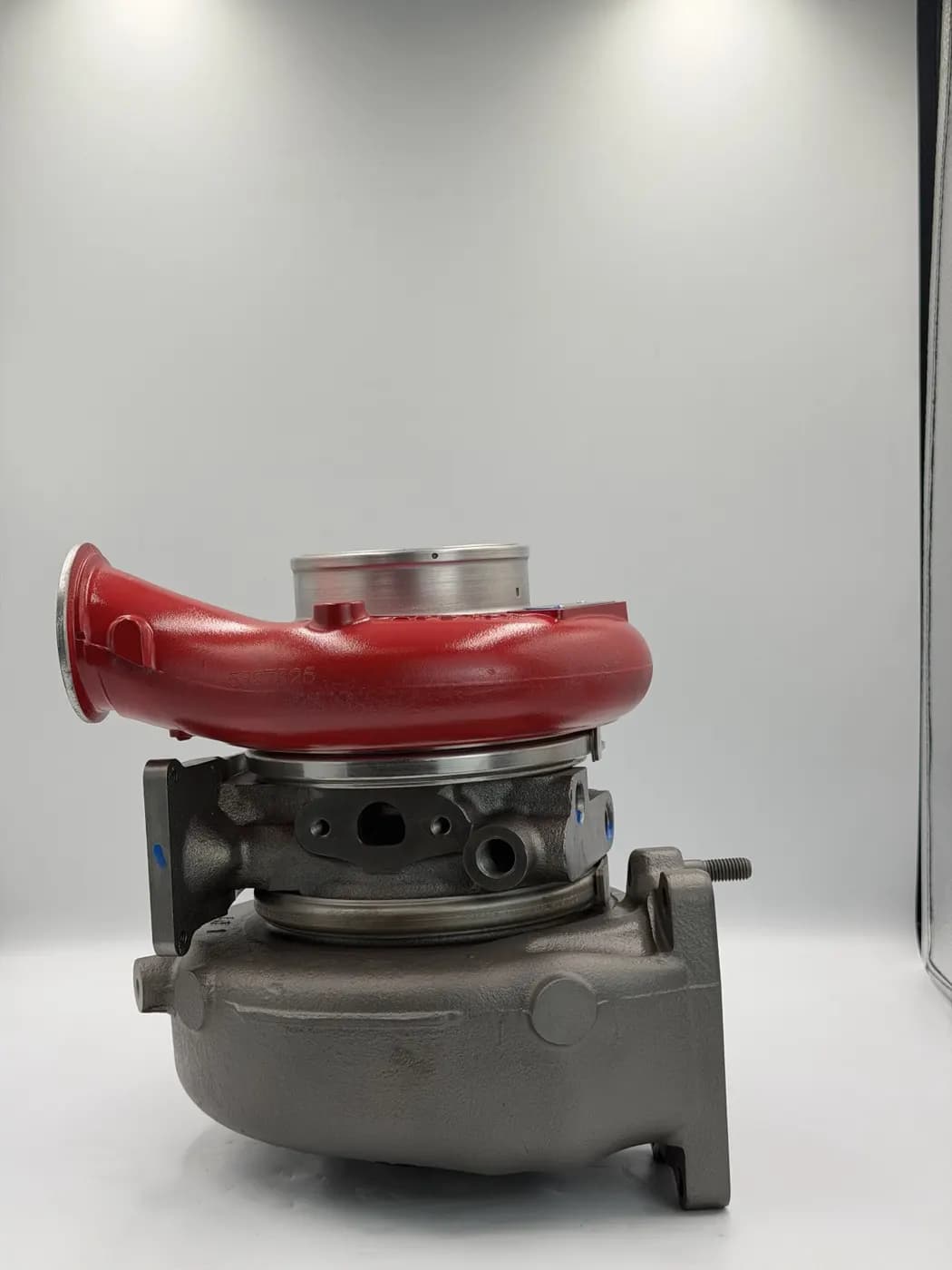

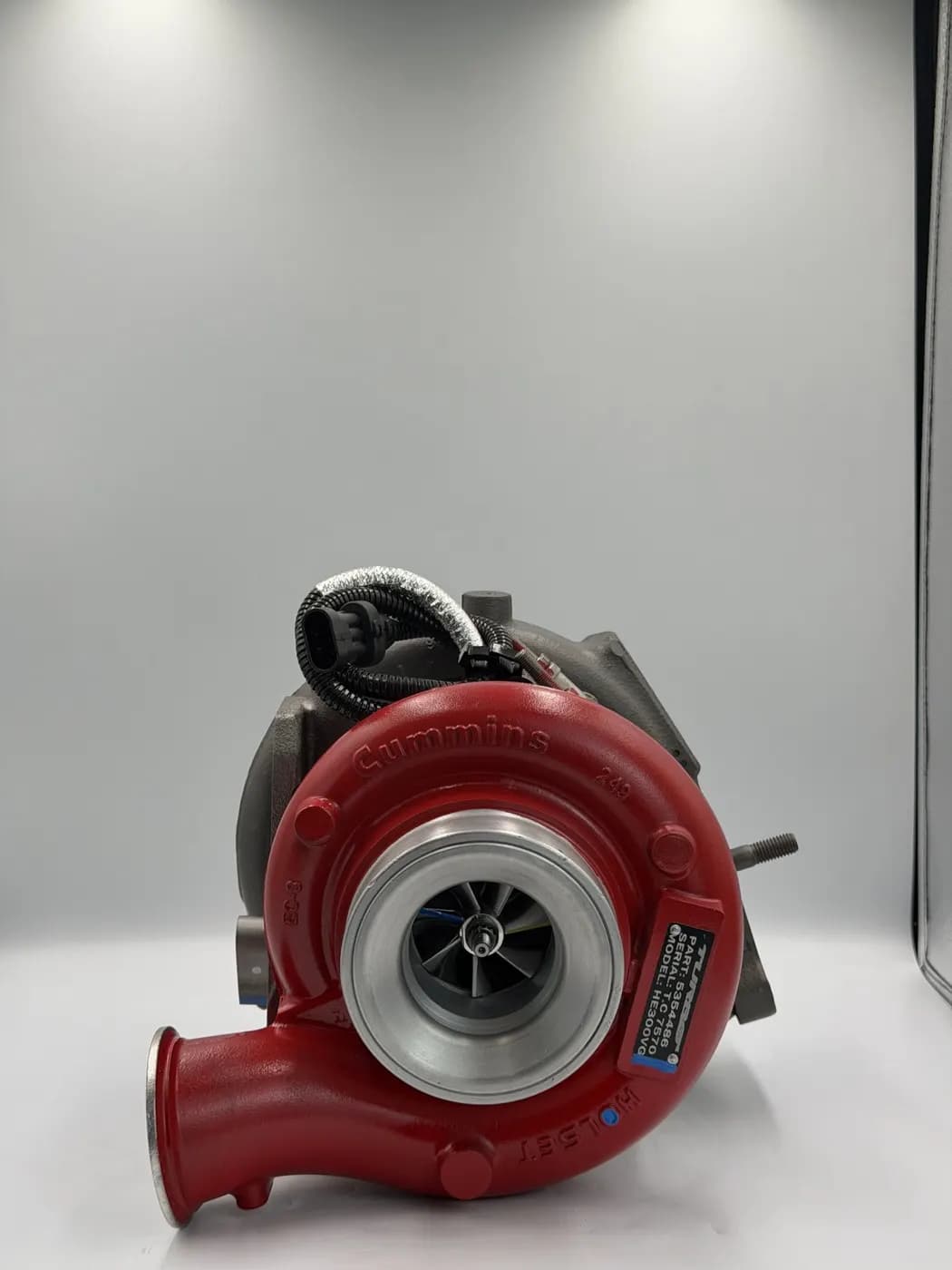

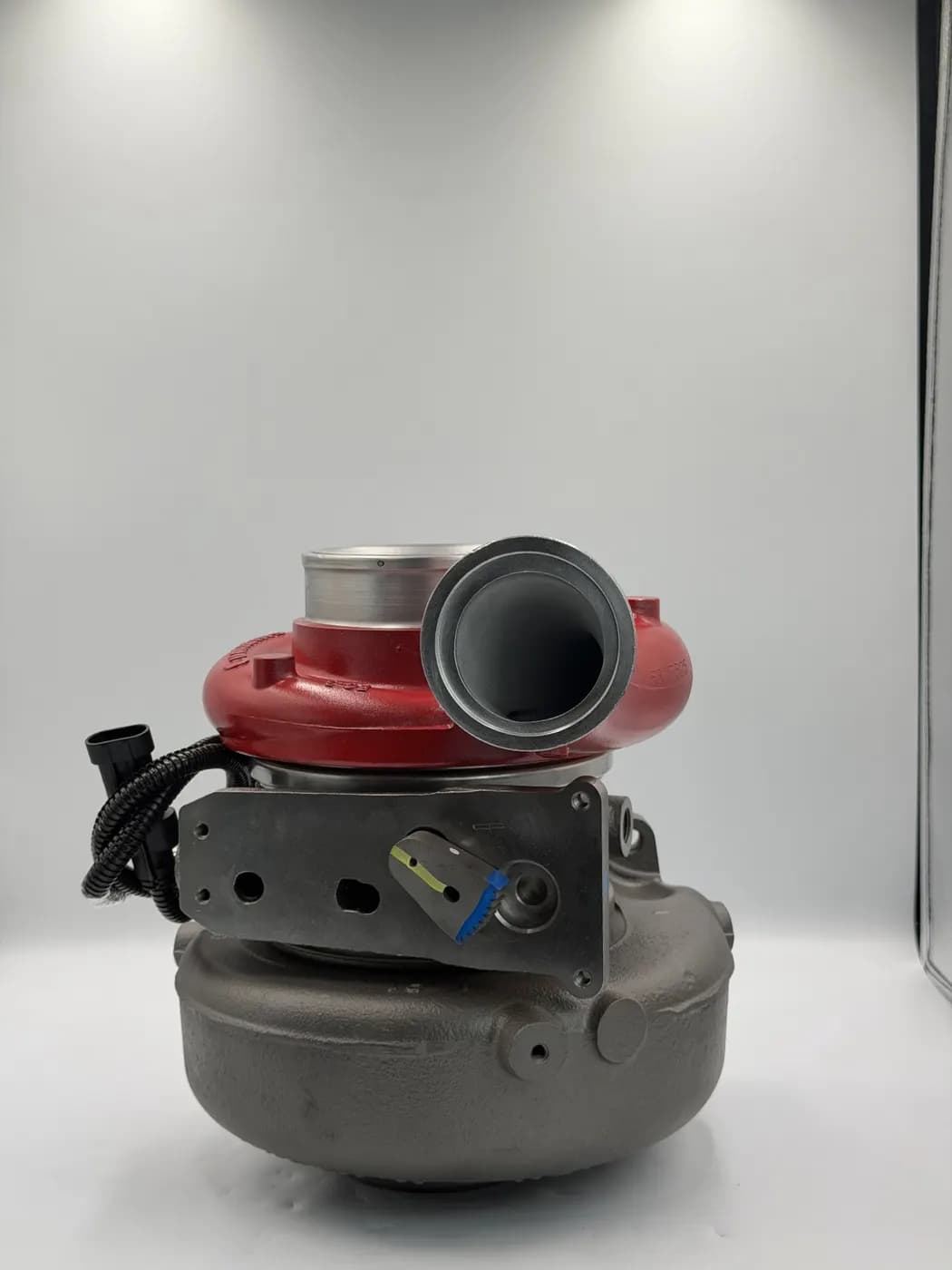

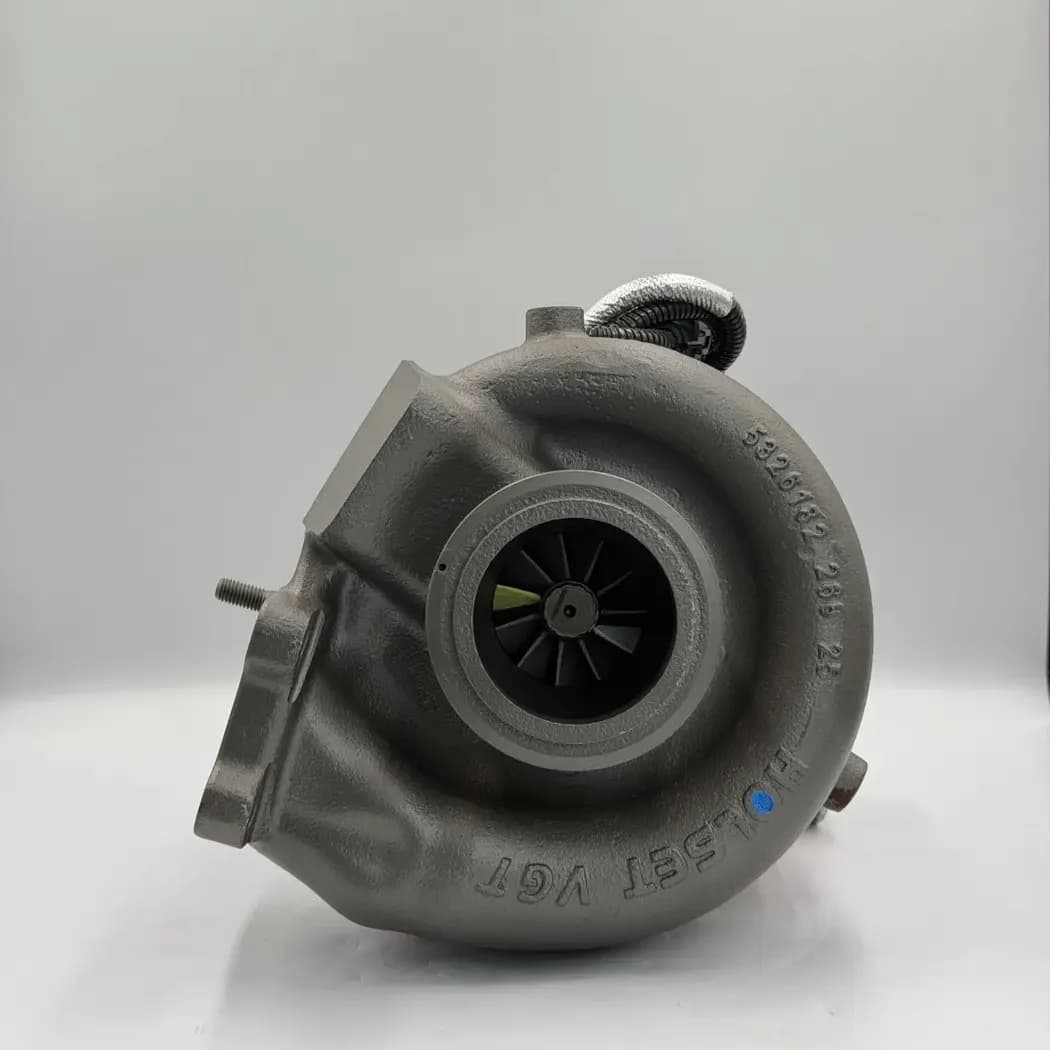

Remanufactured 5354486 Cummins ISB 6.7L Holset HE300VG Turbocharger

The 5354486 Turbocharger is a purpose-matched Holset HE300VG assembly for Cummins ISB 6.7L 2018-2022, Medium-duty Cummins ISB applications where verified by ESN. It is built around the exact compressor, turbine, housing, and control specification associated with part number 5354486, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The 5354486 is a later-generation HE300VG turbo for Cummins ISB 6.7L applications, including 2018-and-newer medium-duty platforms where specified by ESN. Its electronically controlled vane system is integrated into the engine's boost, EGR, aftertreatment, and engine-brake strategies. Clean oil supply, unrestricted crankcase ventilation, and accurate actuator calibration are critical to protect the center housing and keep the vane mechanism responsive.

This is the turbo-only version and is supplied without the electronic actuator. The existing actuator should only be reused after its condition, compatibility, and calibration are verified; a worn or incorrectly indexed actuator can cause boost, vane-position, and engine-brake faults even when the turbocharger itself is sound. Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
