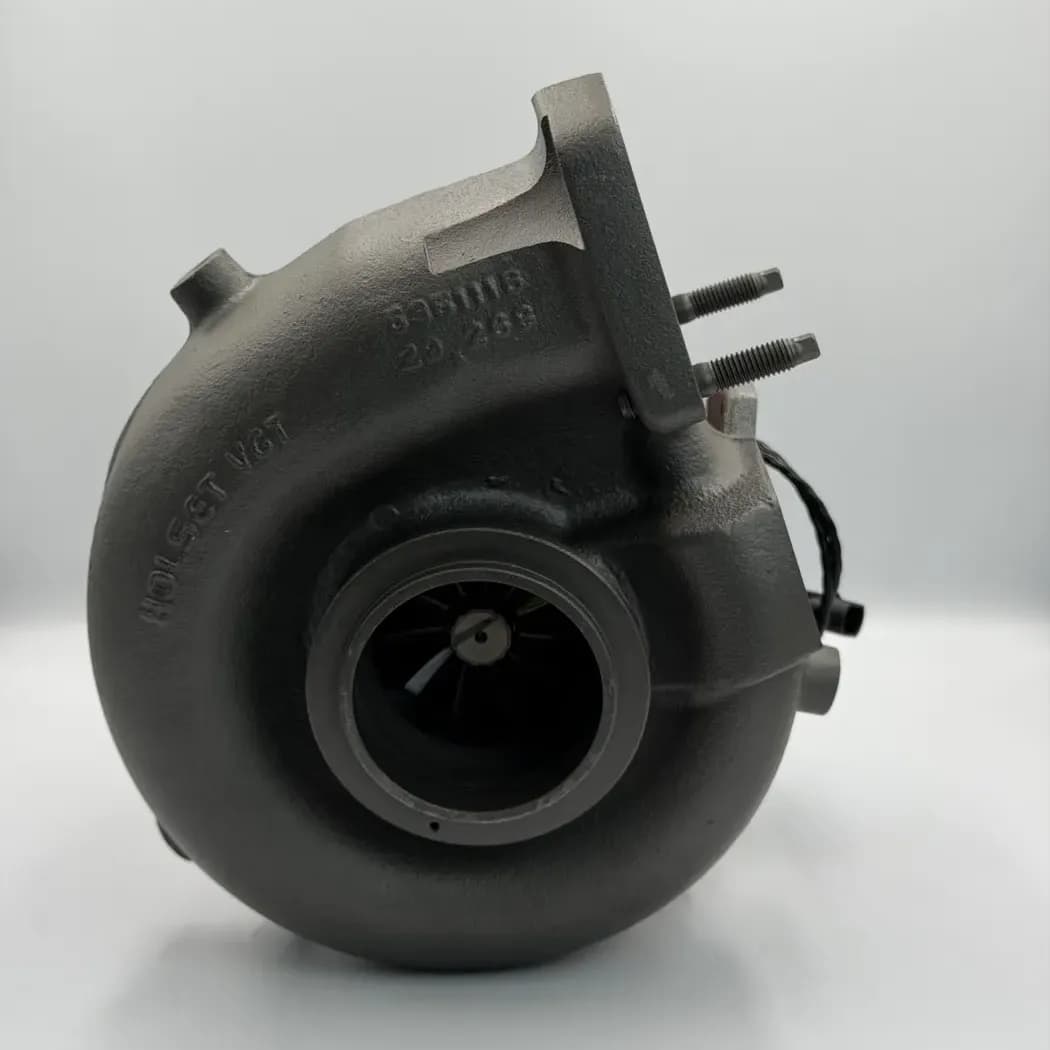

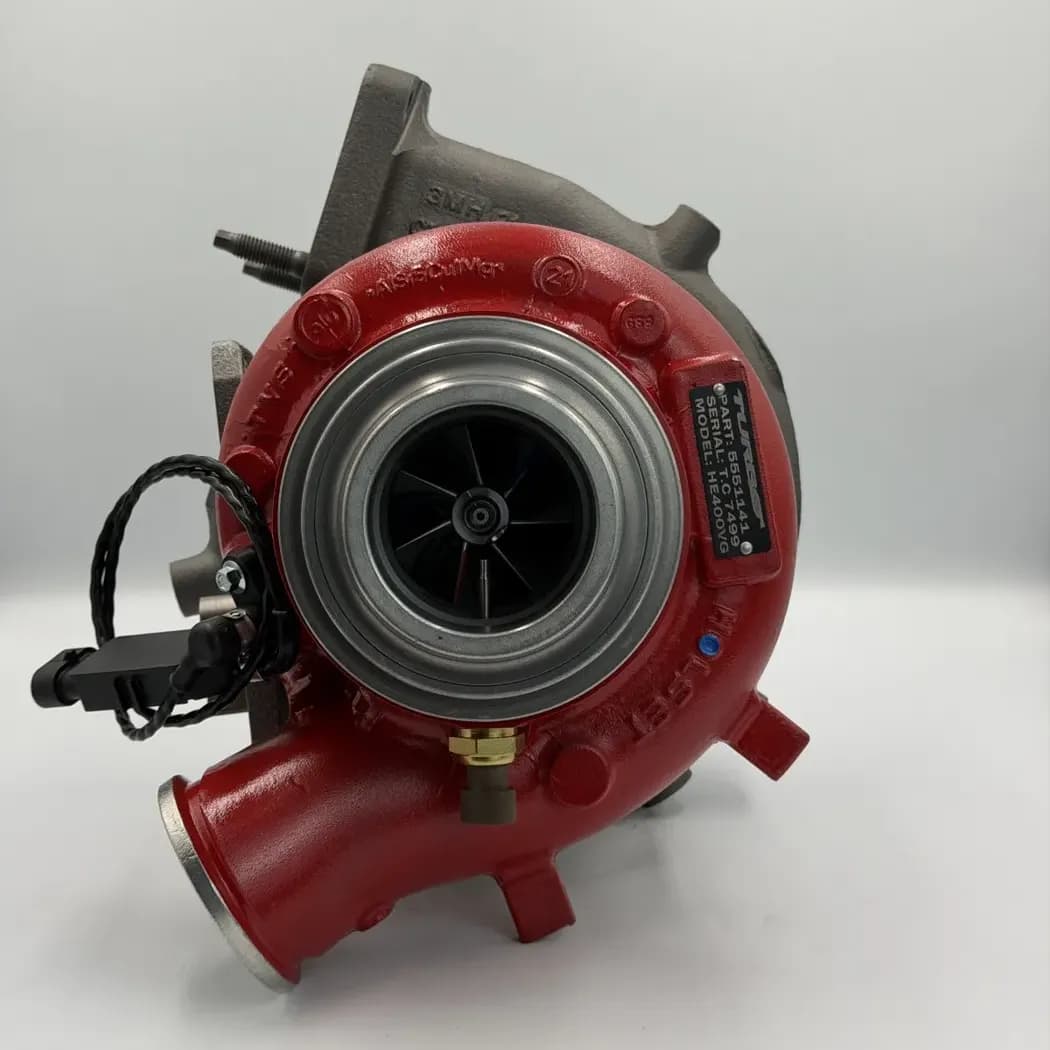

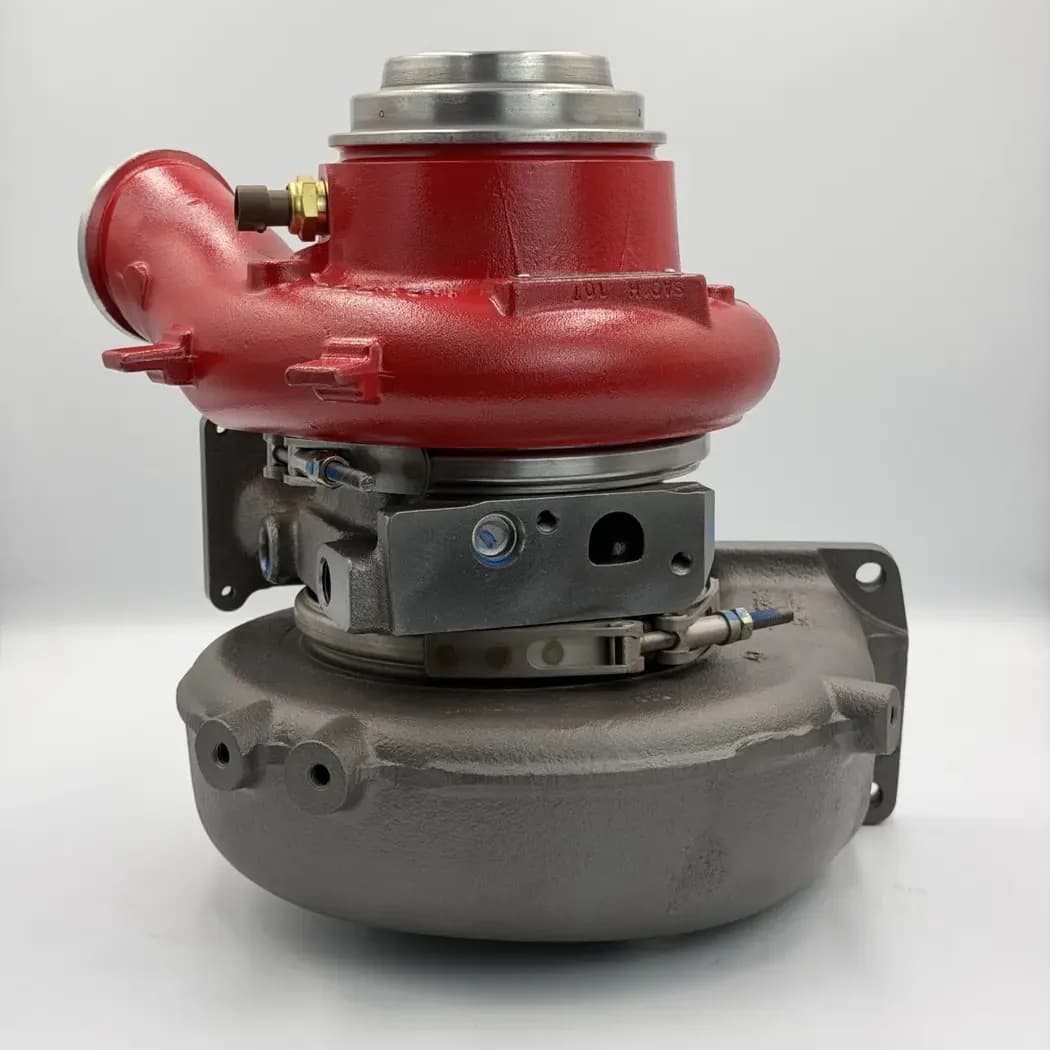

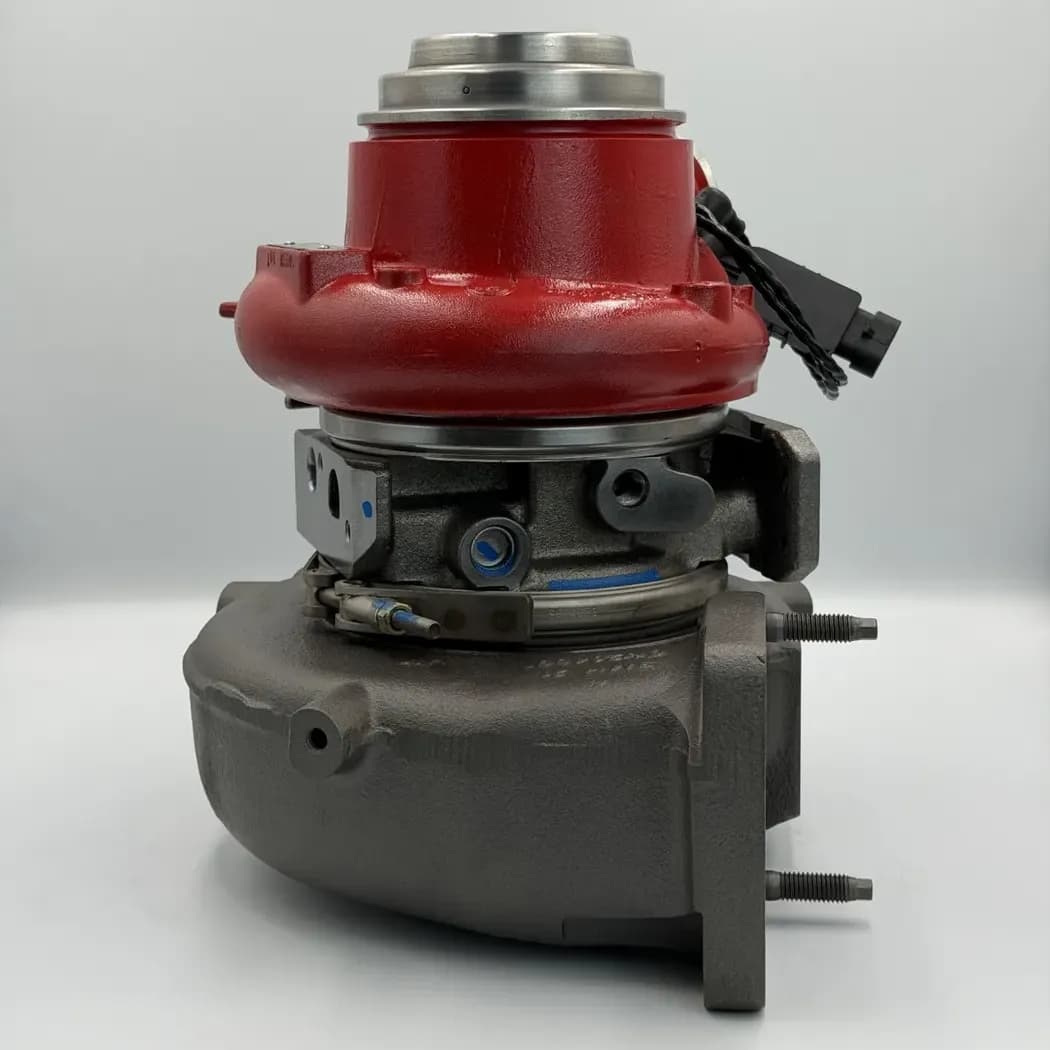

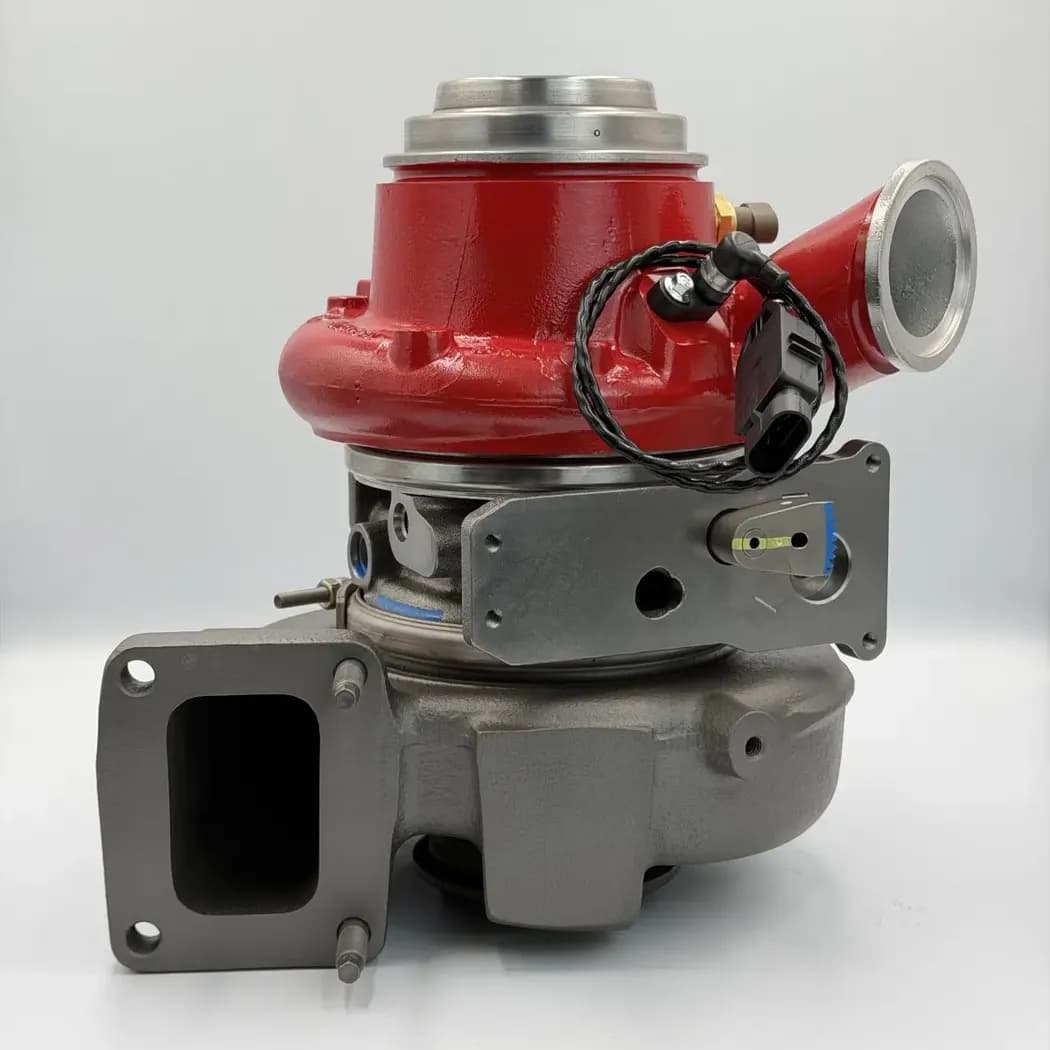

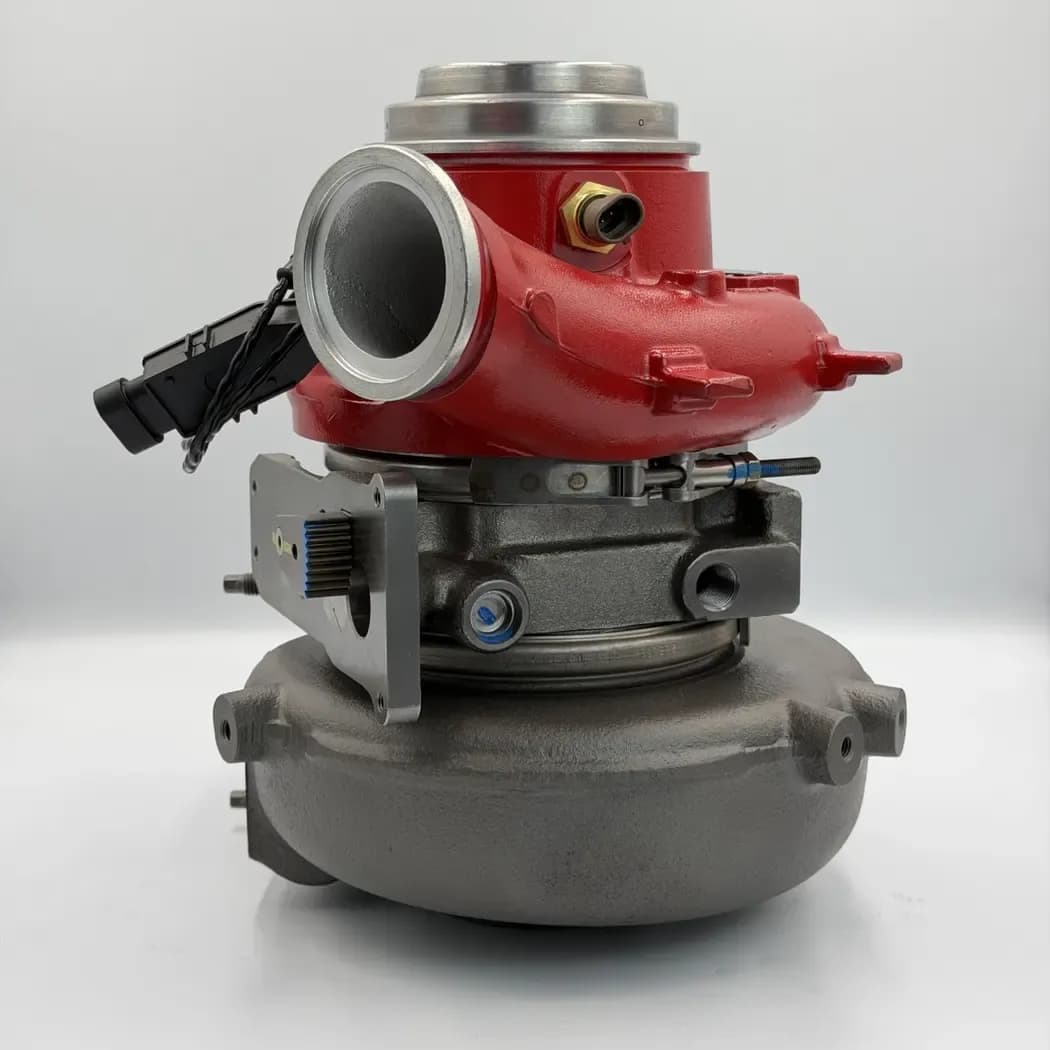

Remanufactured 5551141 Cummins X15 Holset HE400VG Turbocharger

The 5551141 Turbocharger is a purpose-matched Holset HE400VG assembly for Cummins X15, EPA21 and later X15 applications where verified by ESN. It is built around the exact compressor, turbine, housing, and control specification associated with part number 5551141, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The 5551141 is an EPA21-generation HE400VG turbocharger for Cummins X15 engines. It forms part of a tightly integrated air-management system that coordinates boost, EGR, exhaust temperature, aftertreatment operation, and engine braking. Later-generation controls are especially sensitive to actuator position and vane movement, so installation should include a complete air, exhaust, oil, and electronic system check.

This is the turbo-only version and is supplied without the electronic actuator. The existing actuator should only be reused after its condition, compatibility, and calibration are verified; a worn or incorrectly indexed actuator can cause boost, vane-position, and engine-brake faults even when the turbocharger itself is sound. Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
