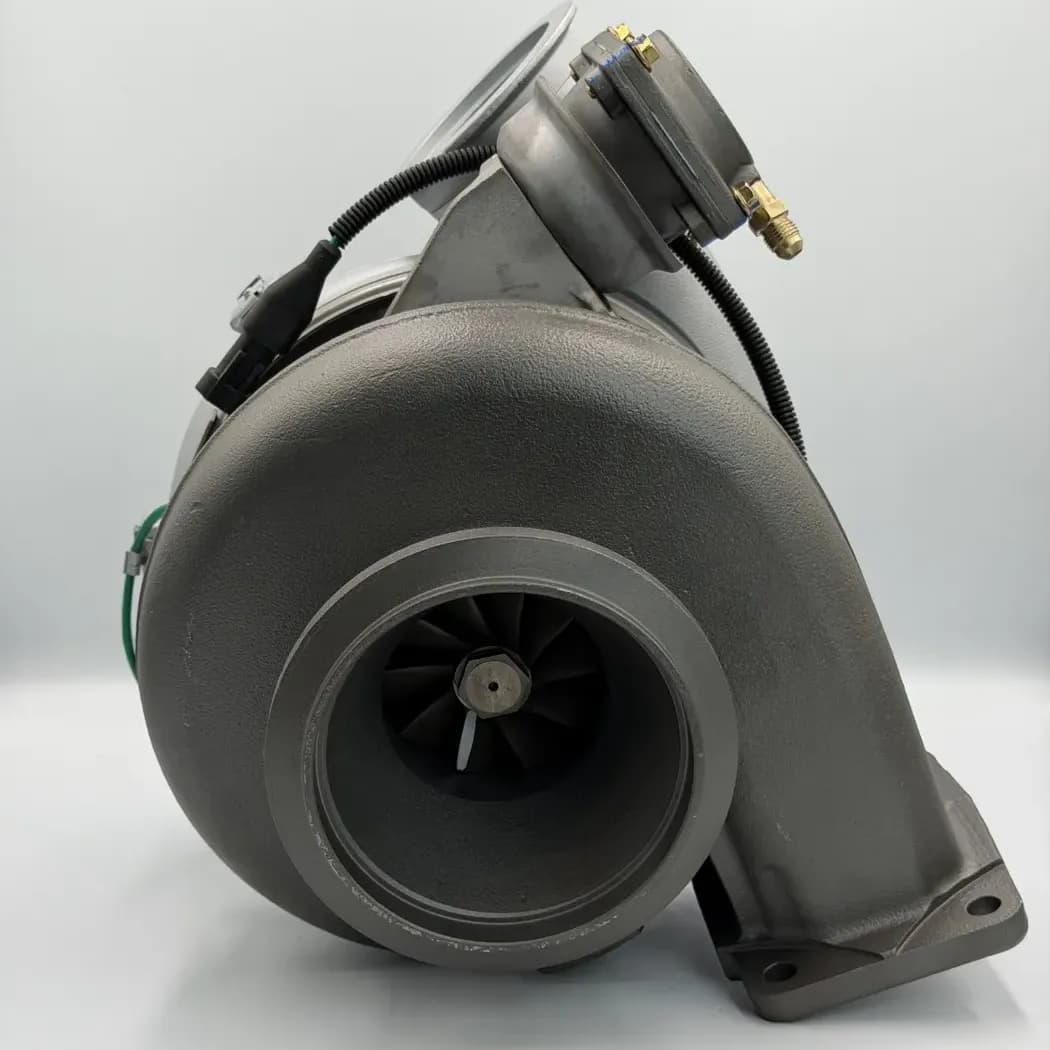

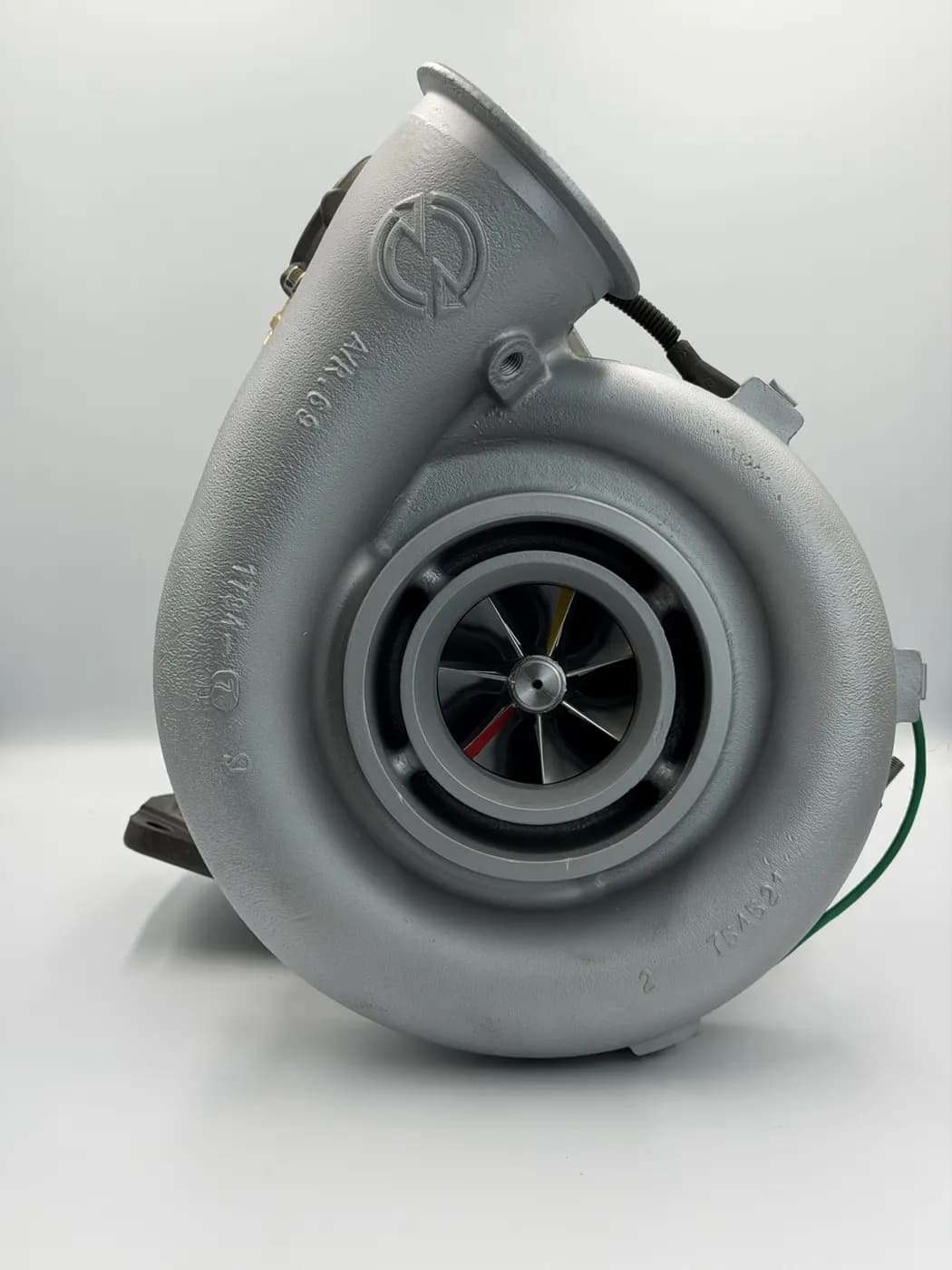

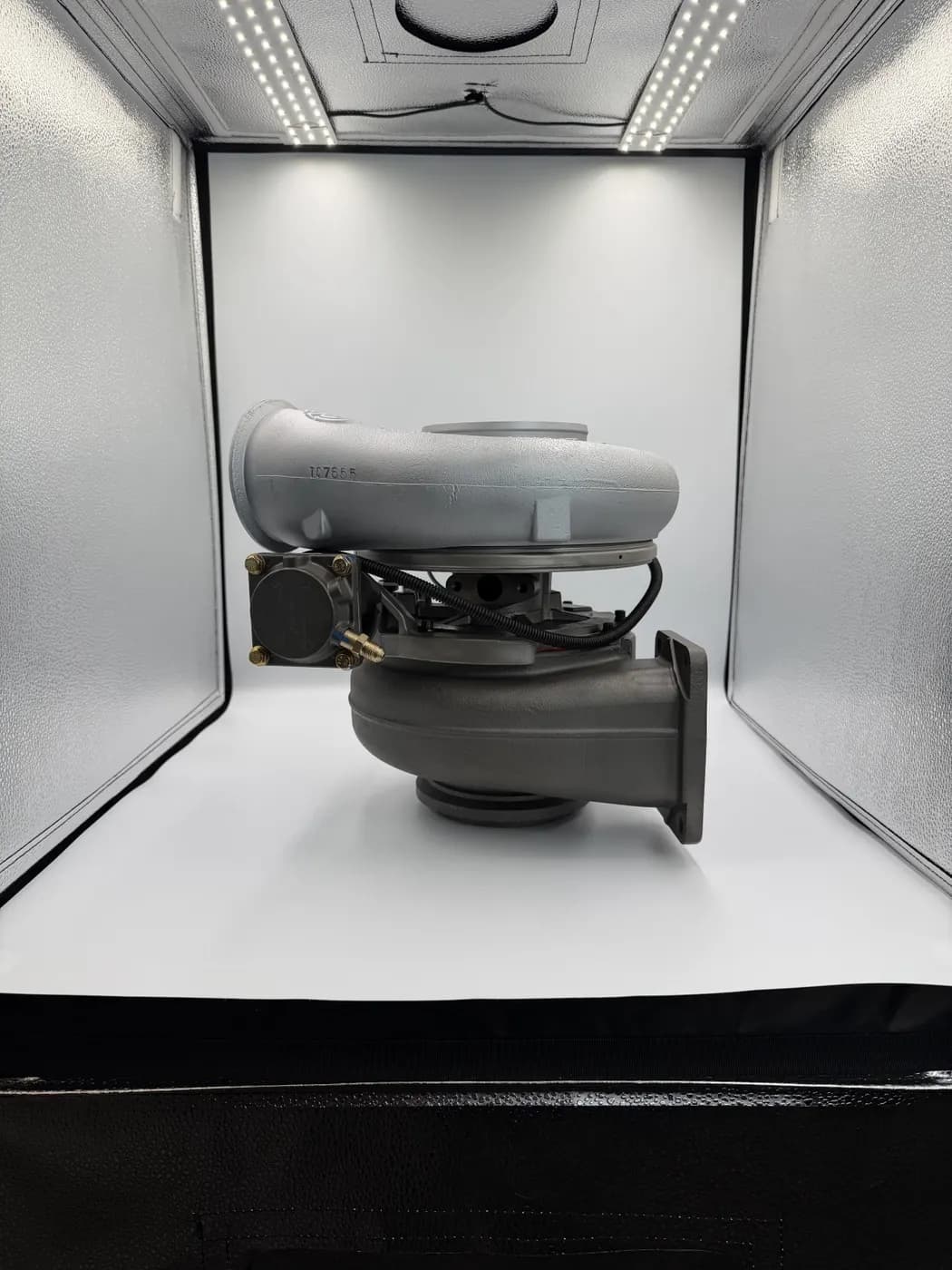

Remanufactured 758204-9007S Detroit Diesel Series 60 Garrett GTA45 Turbocharger

The 758204-9007S Turbocharger is a purpose-matched Garrett GTA45 assembly for Detroit Diesel Series 60, Heavy-duty highway applications matching the listed OE number. It is built around the exact compressor, turbine, housing, and control specification associated with part number 758204-9007S, so fitment should be confirmed from the engine serial number and original turbo tag rather than by engine family alone.

The Garrett GTA45 family is used on high-output Detroit Series 60 applications, including specific 14.0L configurations. Its large-frame compressor supports high airflow while the turbine and wastegate arrangement control response and drive pressure under heavy load. Because multiple GTA45 versions exist, the complete Garrett number and Detroit OE number should be matched before installation.

This listing is supplied as the turbocharger configuration shown. Correct installation requires clean oil feed and drain paths, a sealed charge-air and exhaust system, proper air filtration, and confirmation that the original failure did not leave debris or contamination in the engine system.

Turbo Centre remanufacturing begins with complete disassembly and thorough cleaning so every critical surface can be inspected. Worn bearings, seals, and service components are replaced; shaft, wheel, housing, and vane-system condition are measured; the rotating assembly is balanced; and the completed turbo is checked for smooth operation, oil sealing, and correct control movement before shipment. This process restores the unit as a complete engineered assembly rather than simply replacing the visibly damaged component.
